Built-in Broadcom 7nm Chip,Max.Power Consumption 9W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Interoperable with other IEEE-compliant 400GBASE interfaces where applicable
4x 106.25G PAM4 Retimed 400GAUI-4 Electrical Interface
Compliant with QSFP112 MSA CMIS Rev4.0
Hot-pluggable QSFP112 Form Factor
High-speed Electrical Compliant to IEEE 802.3db
Class 1 Laser Safety

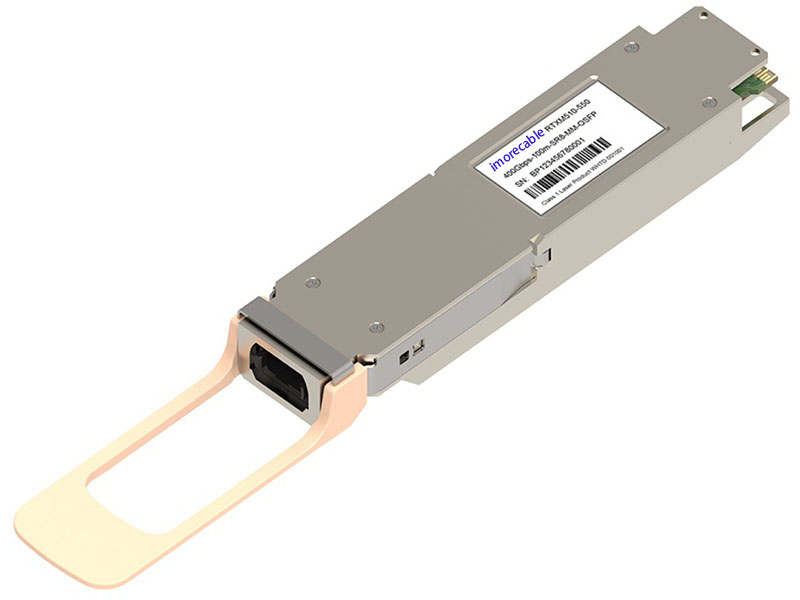

Part Number | QSFP112-SR4-400G | Vendor Name | Imorecable |
Form Factor | QSFP112 | Max Data Rate | 425Gbps(4x 106.25Gb/s) |
Wavelength | 850nm | Max Cable Distance | 30m@OM3/50m@OM4 |
Connector | MPO-12/APC | Media | MMF |
Transmitter Type | VCSEL | Receiver Type | PIN |
TX Power | -4.6~4dBm | Minimum Receiver Power | -6.4dBm |
Power Budget | 1.8dB | Receiver Overload | 4.0dBm |
Power Consumption | ≤9W | Extinction Ratio | >2.5dB |
DDW/DOW | Supported | Commercial Temperature Range | 0 to 70℃(32 to 158℉) |
Modulation(Electrical) | 4x 106.25Gb/s PAM4 | Modulation(Optical) | 4x 106.25Gb/s PAM4 |
CDR(Clock and Data Recovery) | TX and RX | Inbuilt FEC | Yes |
Core Size | 50um | Packaging Technology | COB |
Protocols | IEEE Std 802.3db,QSFP112 MSA,CMIS 4.0 | Warranty | 5 Years |
