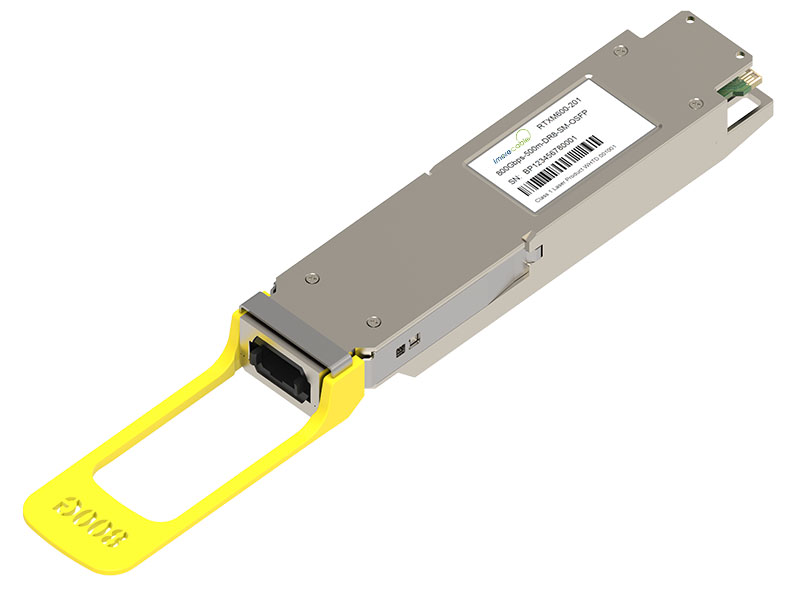

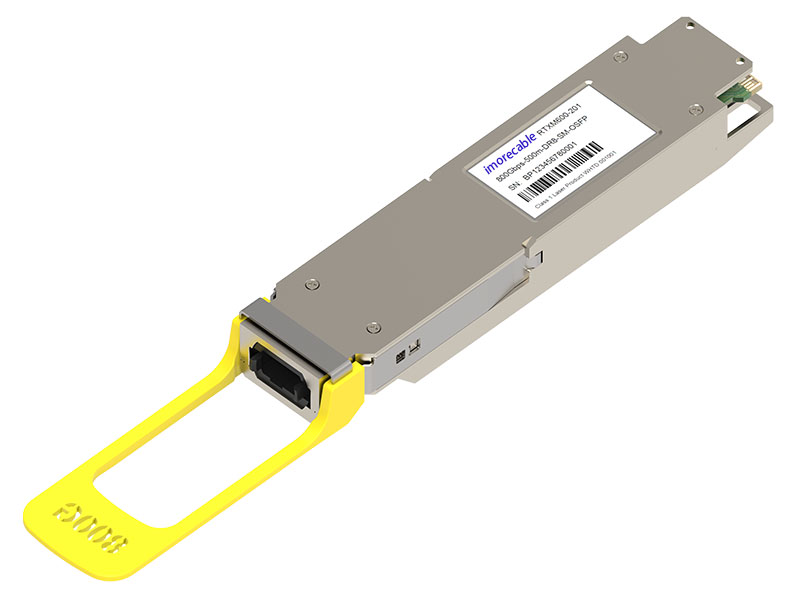

Built-in Marvell 6nm DSP Chip, Max. Power Consumption 16W
Parameter Tests for Superior Performance, Quality, and Reliability
8x106.25G PAM4 Retimed 8x100GAUI-8 C2M Electrical Interface
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Support 2x400G Breakout for Higher Port Density
High-speed Connectivity Compliant to IEEE 802.3ck
Hot Pluggable OSFP MSA Compliant
For Higher Bandwidth in Hyperscale Data Centers and Cloud Infrastructure
Class 1 Laser Safety and RoHS Compliant
NVIDIA Ethernet Compatible | MMA4Z00-NS | Vendor Name | Imorecable |
Form Factor | OSFP Finned Top | Max Data Rate | 850Gbps(8x 106.25Gbps) |
Wavlength | 850nm | Max Cable Distance | 30m@OM3/50m@OM4 |
Connector | Dual MTP/MPO-12 APC | Media | MMF |
Transmitter Type | VCSEL | Receiver Type | PD |
TX Power | -4.6~4dBm | Minimum Receiver Power | -6.4dBm |
Power Budget | 1.8dB | Receiver Overload | 4dBm |
Power Consumption | ≤16W | Extinction Ratio | >2.5dB |
DDM/DOM | Supported | Commercial Temperature Range | 0 to 70℃(32 to 158℉) |
Modulation(Electrical) | 8x106.25Gb/s PAM4 | Modulation(Optical) | Two ports 4x106.25Gb/s PAM4 |
CDR(Clock and Data Recovery) | TX & RX Built-in CDR | Inbuilt FEC | Yes |
Protocols | OSFP MSA 5.0,CMIS 5.1 | Warranty | 5 Years |
