LSZH or PVC jacket

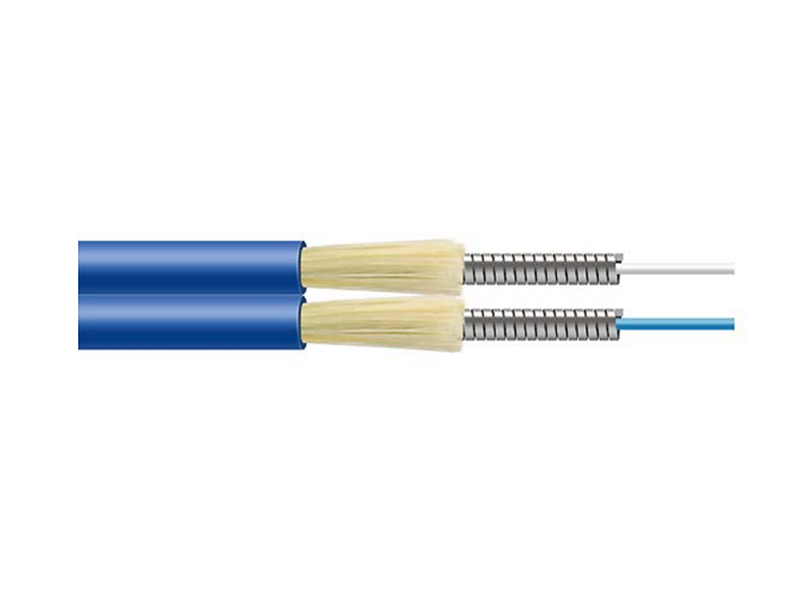

It is the construction stainless steel tube with Dupont aramid yarn provide the cable enough tensile strength and pressure strength.
Add stainless steel weave mesh can further enhance cable tension, and enhance the performance of rat bite prevention.

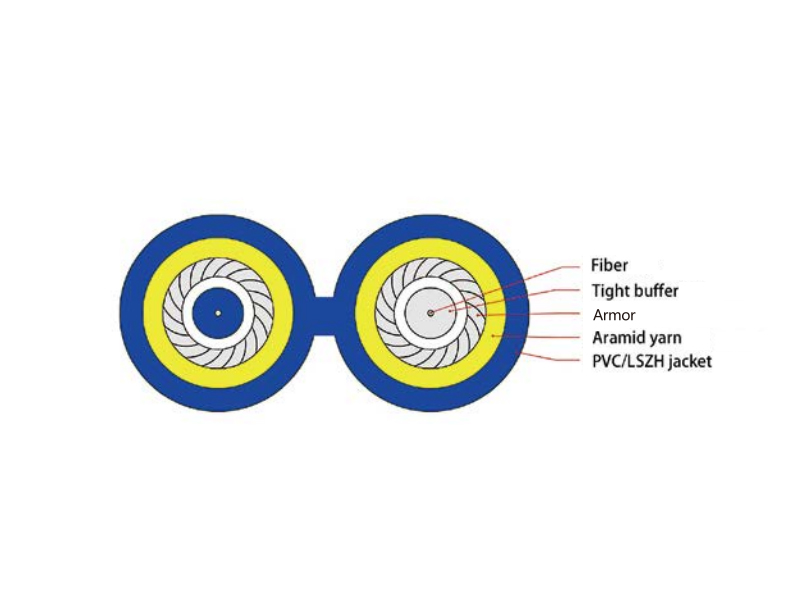

Circular section design, convenient line grooves, pipes
Small volume ,good bending radius ,easy to stripping , convenient for operation.
Cores | Parallel reinforcement specification (mm) | Outer diameter (mm) | Weight (g/M) | Max. Tension (N) | Max. Crush resistance (N) | Bending radius (mm) | |||
Long term | Short term | Long term | Short term | Dynamic | static | ||||
2 | Kevlar | 2.0*4.0mm | 24 | 200 | 500 | 300 | 1000 | 10D | 20D |
2 | Kevlar | 3.0*5.8mm | 32 | 350 | 800 | 300 | 1000 | 10D | 20D |
2 | kevalr+ stainless steel weave mesh | 3.2*6.0mm | 36 | 500 | 1000 | 500 | 2000 | 10D | 20D |
