LSZH or PVC jacket

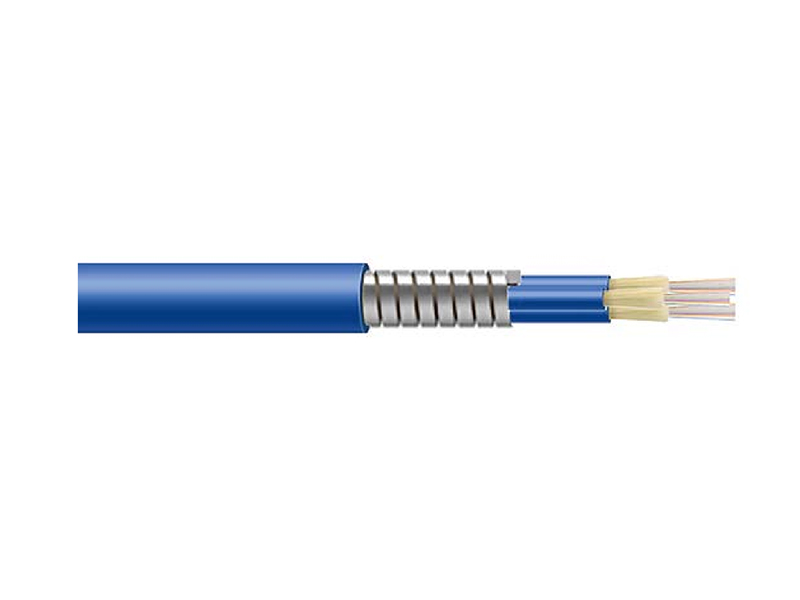

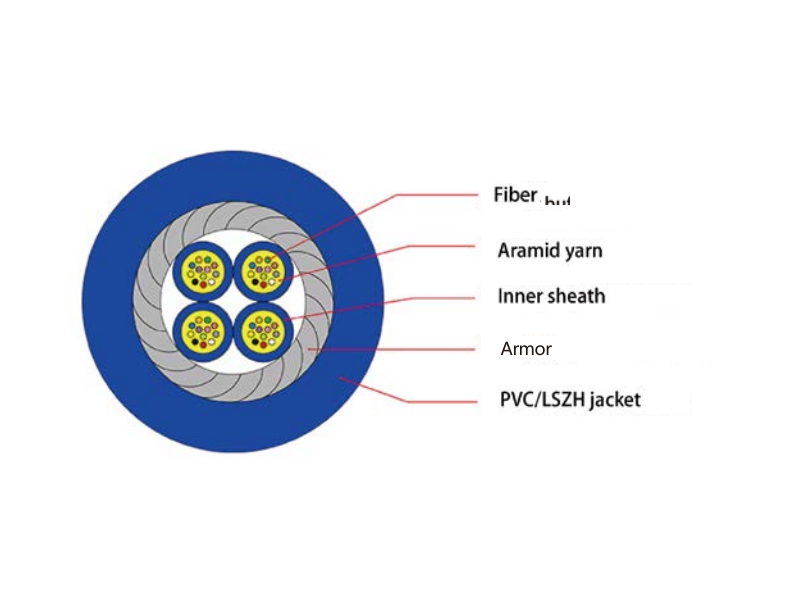

It is the construction stainless steel tube with imported aramid yarn provide the cable enough tensile strength and pressure strength .
Add stainless steel weave mesh can further enhance cable tension, and enhance the performance of rat bite prevention.
Circular section design, convenient line grooves, pipes
Small volume ,good bending radius ,easy to stripping , convenient for operation.
Fiber count | Inner cable diameter (mm) | Inner fiber count | Outer diameter (mm) | Weight (g/M) | Max. Tension (N) | Max. Crush resistance (N) | Bending radius (mm) | |||
Long term | Short term | Long term | Short term | Dynamic | static | |||||
2-4 | Φ2.0mm single fiber | 2-4 | Φ7.0mm | 65 | 500 | 1200 | 500 | 2000 | 10D | 20D |
4-12 | Φ3.0mm mini multi-core | 1 | Φ5.0mm | 45 | 350 | 800 | 500 | 2000 | 10D | 20D |
12-24 | Φ3.0mm mini multi-core | 4 | Φ9.5mm | 100 | 500 | 1200 | 500 | 2000 | 10D | 20D |
24-48 | Φ3.0mm mini multi-core | 4 | Φ9.5mm | 110 | 500 | 1200 | 500 | 2000 | 10D | 20D |
