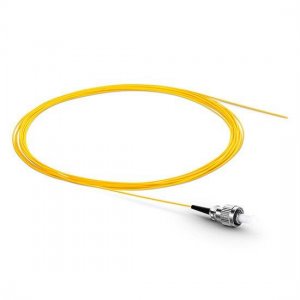

FC/UPC OM3 Pigtails

FC/APC Pigtail | Multi Mode G651.OM3 | 0.9mm

Fiber optic pigtails ate designed to support fusion and mechanical splicing for fiber cabling systems.They provide a fast way to make communiccation devices in the field.

The OM3 Bend-insensitive fiber optic pigtails have less attenuation when bent or twisted than traditional fiber optic pigtails,making installation and maintenance more efficient.

Online inquiry

Share:

Leave a message

X

Name *

Email *

Tel

Website Link

Content

Features

Bend Insensitive Fiber & 7.5mm Min.Bend Radius

Precision Zirconia Ferrule Connectors Ensure Low Loss

Easy strip 900um Tight buffered Coating

Industry Standard PVC Flame retardant Cable Jacket

Support Both Fusion and Mechanical Splicing

Product attributes

Connector A
FC APC SimplexConnector BUnterminated
Fiber Count1 FiberFiber GradeBend Insensitive
Fiber ModeOM3 50/125umWavlength850/1300nm
Jacket ColorAquaCable TypeTight Buffered
Cable Outside Diameter(OD)0.9mmCable JavketPVC(OFNR)
Min.Bend Radius(Optical Fiber)7.5mmMin.Bend Radius(Fiber Cable)20/10D(Dynamic/Static)
Connector Durability1000 TimesStandardRoHS Comliant
Attenuation at 850nm0.30dB/kmAttenuation at 1300nm1.0dB/km
Insertion Loss≤0.3dBReturn Loss≥30dB
Vidration≤0.2dBInterchangeability≤0.2dB
Operating Temperature
-40 to 75℃(-40 to 167℉)Storage Temperature-45 to 85℃(-49 to 185℉)
