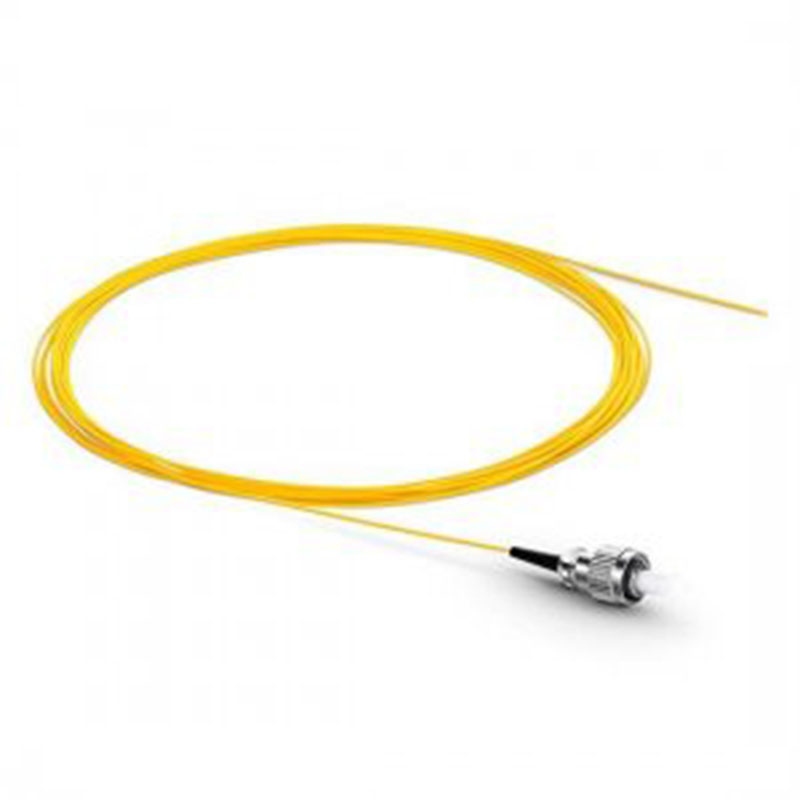

FC/UPC OS2 Pigtails

FC/UPC Pigtail | Single Mode G657.A2 | 0.9mm

Fiber optic pigtails are derigned to support fusion and mechanical splicing for fiber cabling systems.They provide a fast way to make communication devices in the field.

The OS2 bend insensitive fiber optic pigtails have less attenuation when bent or twisted than traditional fiber optic pigtails,making installation and maintenance more efficient.

Online inquiry

Share:

Leave a message

X

Name *

Email *

Tel

Website Link

Content

Features

G657A1 Bend Insensitive Fiber & 10mm Min.Bend Radius

Precision Zirconia Ferrule Connectors Ensure Low Loss

Easy strip 900um Tight buffered Coating

Industry Standard PVC Flame-retardant Cable Jacket

Support Both Fusion and Mechanical Splicing

Product attributes

Connector A
FC UPC SimplexConnector B Unterminated
Fiber Count1 FiberFiber GradeG657A1
Fiber ModeOS2 9/125umWavelength1310/1550nm
Jacket Color
YellowCable TypeTight-Buffered
Cable Outside Diameter(OD)0.9mmCable JacketPVC(OFNR)
Min.Bend Radius(Optical Fiber)10mmMin.Bend Radius(Fiber Cable)10/5D(Dynamic/Static)
Connectoe Durability1000 TimesStandardRoHS Comliant
Attenuation at 1310nm
0.36dB/kmAttenuation at 1550nm0.22dB/km
Insertion Loss≤0.3dBReturn Loss≥50dB
Vibration≤0.2dBInterchangeability≤0.2dB
Operating Temperature-40 to 75℃(-40 to 167℉)Storage Temperature-45 to 85℃(-49 to 185℉)
