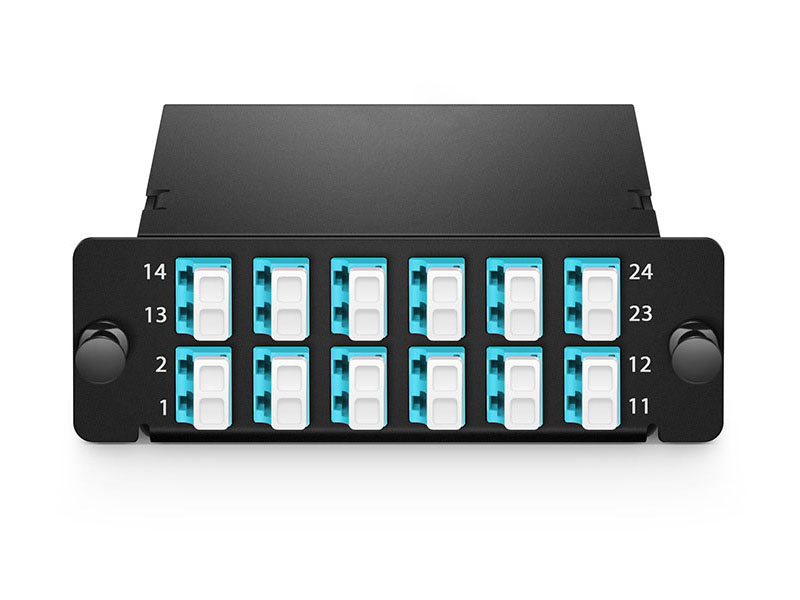

MTP-12 to LC x6 Cassette

FHD® MTP®-12 to 6x LC Duplex Fiber Optic Cassette,OM4 50/125um,Type A,12 Fibers,Plug-N-Play

FHD® High Density series MTP® fiber cassette modules are pre terminated,pre tested,and come with 12 -Fiber MTP® adapter on the rear of the units routed to duplex LC adapters on the front patch field,which interconnect with high density fiber cable assemblies for multiple applications.

The MTP®-12 cassette enables high density,cost effective 10G deployments and the simplest migraation to 40G,100G,and even 400G.The  cassette allows 48 fiber connections to be deployed in the FHD® series rack unit(1 RU).


Models

Online inquiry

Share:

Leave a message

X

Name *

Email *

Tel

Website Link

Content

Features

US Conec MTP Adapter and Corning ClearCurve Fiber

Type A and AF Are Used as a Pair in a Two Cassette Method

Fully Compatible with All FHD Enclosures

4 Cassettes Fit into 1U,Up to 48 Fibers

Interface Color-coding Makes it Easy to Identift Fiber Type

Product attributes

Fiber Count12 FiberFiber ModeOM4 50/125 µm
Front Connector TypeLC UPC Duplex(Aqua)Number of LC Port6 Ports
Rear Connector TypeUS Conec MTP UPC(Pinned)Number of MTP Port
1 Port
MTP AdapterKey Up to Key DownHousing TypeCassette
Material of SleeveZirconia CeramicMaterial of Cassette BodyAluminium(AL5052)
PolarityType ADimensions(HxWxD)1.38''*4.29''*4.64''(35*109*118MM)
Insertion LossMTP≤0.35dB,LC≤0.2dBReturn LossMTP≥20dB,LC≥30dB
StendardRoHS CompliantApplicationMatchaing for FHD® Series Enclosures
