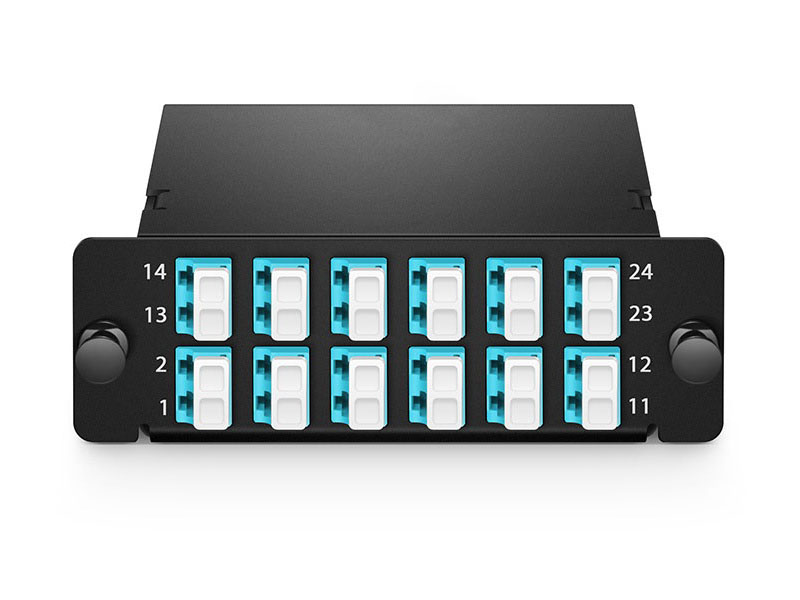

MTP-24 to LC x12 Cassette

FHD® MTP®-24 to 12 x LC Duplex Fiber Optic Cassette,OS2 9/125um,Type A,24 Fibers,Plug-N-Play

FHD® High Density series MTP® fiber cassette modules are pre-terminated,pre-tested,and come with 24 fiber MTP® adapter on the units routed to duplex LC adapters on the front patch field. which interconnect with high density fiber cable assemblies for multiple applications.The MTP®-24 cassette enables high density,cast effective 10G deployments and the simplest migration to 40G,100G,and even 400G.The cassette allows 96 fiber connections to be deployed in the FHD® series rack unit(1 RU).

规格名称_1

Online inquiry

Share:

Leave a message

X

Name *

Email *

Tel

Website Link

Content

Features

US Conec MTP Adapter and Corning SMF-28 Ultrs Fiber

Type A and AF Aer Used as a Pair in a Two Cassette Method

Fully Compatible with All FHD Enclosures

4 Cassettes Fit into 1U,Up to 96 Fibers

Interface Color-coding Makes it Easy to identify Fiber Type

Product attributes

Fiber Count24 FibersFiber ModeOS2 9/125um
Front Connector TypeLC UPC DuplexNumber of LC Port12 Ports
Rear Connector TypeUS Conec MTP APC(Pinned)Number of MTP Port1 Port
MTP AdapterKey Up to Key DownHousing TypeCassette
Material of SleeveZirconia CeramicMaterial of Cassette BodyAluminium(AL5052)
Polarity
Type ADimensions(HxWxD)1.38''*4.29''x4.64''(35*109*118mm)
Insertion LossMTP≤0.35dB,LC≤0.2dBReturn LossMTP≥60dB,LC≥50dB
StendardRoHS CompliantApplicationMatching for FHD Series Enclosures
