MTP-LC Cassette

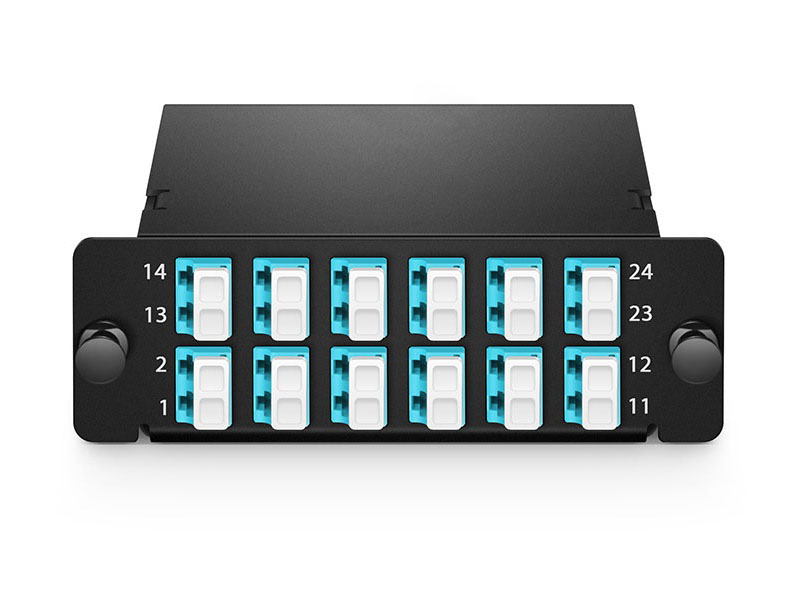

FHD® 2x MTP®-12 to 12x LC Duplex Fiber Optic Cassette,OS2 9/125um,Type A,24 Fibers,Plug-N-Play

FHD® High Density series MTP® fiber cassette modules are pre-terminated,pre tested,and come with 12-fiber MTP® adapter on the rear of the units routed to duplex LC adapters on the front patch field,which interconnect with high density fiber cable assemblies for multiple applications.

The MTP®-12 cassette enables high-density,cost-effective 10G deployments and the simplest migration to 40G,100G,and even 400G.The cassette allows 96 fiber connections to be deployed in the FHD® series rack unit(1 RU).

Online inquiry

Share:

Leave a message

X

Name *

Email *

Tel

Website Link

Content

Features

US Conec MTP® Adapter and Corning SMF-28® Ultre Fiber

Fully Compatible with All FHD® Enclosures

4 Cassettes Fit into 1U,Up to 96 Fibers

Plug-N-Play and Tool-less Installation for Quick Deployment

Method A Link Using Type A and AF Cassettes Paired Together

Support Migration from 10G to 40G/100G Ethernet and Beyond

Product attributes

Fiber Count24 FibersFiber ModeOS2 9/125
Front Connector TypeLC UPC Duplex(Aqua)Number of LC Port12 Ports
Rear Connector TypeUS Conec MTP® APC(Pinned)Number of MTP® Port2 Ports
MTP Adapter
Key Up to Key DownHousing TypeCassette
Material of SleeveZirconia CeramicMaterial of Cassette BodyAluminum(AL5052)
PolarityType ADimensions(HxWxD)1.38''x4.29''x4.64''(35x109x118mm)
Insertion Loss
MTP≤0.35dB,LC≤0.2dBReturn LossMTP≥60dB,LC≥50dB
StandardRoHS CompliantApplication
Matching for FHD® Series Enclosures
