LSZH or PVC jacket protection.

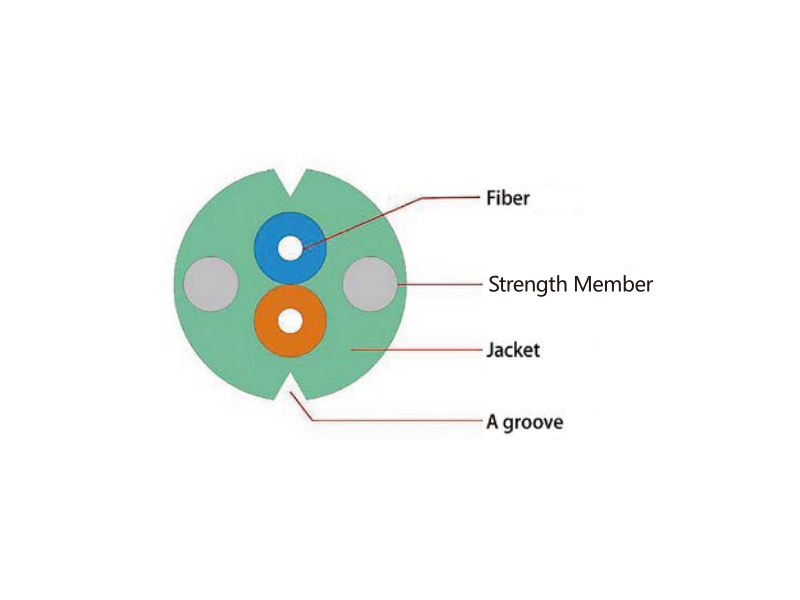

Two parallel FPR or galvanized steel wire reinforcement to protect the fiber and provide adequate tension and pressure.
Rolex flex fiber, to provide greater bandwidth and enhance network transmission characteristics.
Round type design can be easy for the pipe installation.
Easily peeled off, light weight, small size, unique groove design, easy to follow the installation and maintenance.
Cores | Parallel reinforcement specification (mm) | Outer diameter (mm) | Weight (g/M) | Max. Tension (N) | Max. Crush resistance (N) | Bending radius (mm) | |||
Long term | Short term | Long term | Short term | Dynamic | static | ||||
2 | Φ0.45mm | Φ3.0mm | 16 | 500 | 1000 | 300 | 1000 | 10D | 20D |
