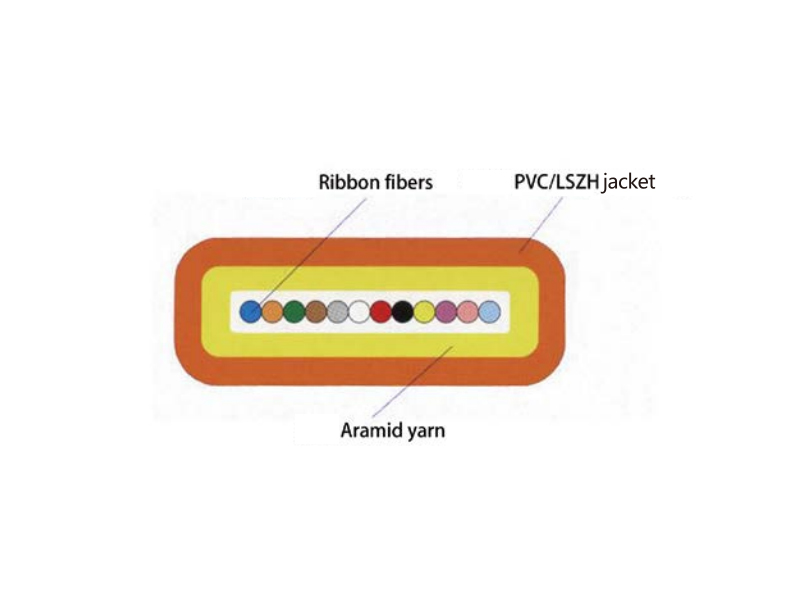

Multi-cores in one tube, and are lined with color numbers
Lined fibers with different colors make it easy for installation
High strength aramid yarn offers high tensile strength
Flame- retardant
It’s available under high and low temperatures
Fiber count | Outer diameter (mm) | Weight (g/M) | Tension (N) | Min. bending radius (mm) | Crush Resistance (N/100mm²) | ||
Long term | Short term | Static | Dynamic | ||||
4 | 3.5*2.5 | 12 | 200 | 80 | 35H | 25H | 500 |
6 | 3.8*2.5 | 13 | 200 | 200 | 35H | 25H | 500 |
8 | 4.5*2.5 | 15 | 200 | 200 | 35H | 25H | 500 |
12 | 5.0*2.5 | 17 | 200 | 200 | 35H | 25H | 500 |
