Low insertion loss, high return loss
High dense connection, easy for operation
High credibility and stability
Good in repeatability and exchangeability

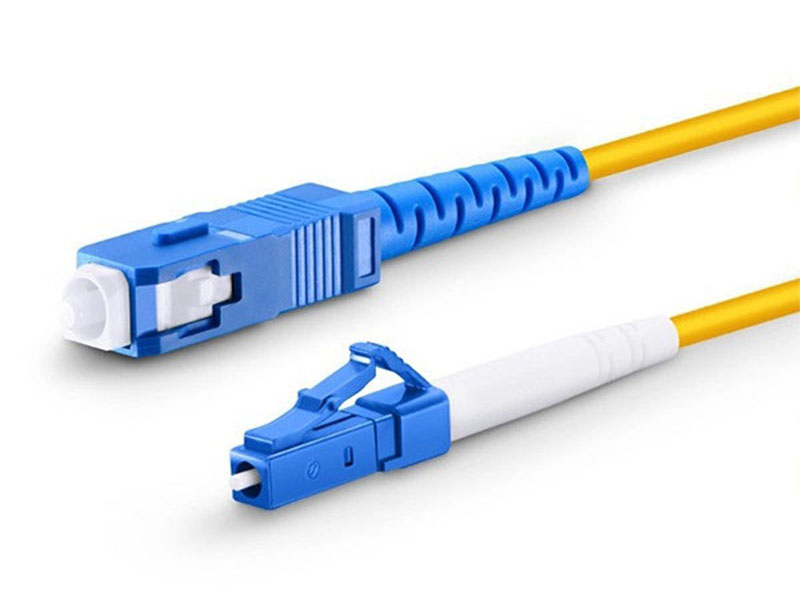

Product Name | LC UPC to SC UPC Fiber Patch Cord | Color | Yellow/Customized |
Connector Type | LC UPC to SC UPC | Length | 1m/3m/5m/Customized |
Cable Diameter | 0.9/2.0/3.0mm | Insertion loss | ≤0.1dB |
Return loss | ≥50dB | Repeatability | 1000 times |
Operating Temp | -40℃~±80℃ | Storage Temp | -40℃~±80℃ |
Operating Waveelength(nm) | 1310-1550nm | Standrad | CE,RoHS |
