MPO 8 to 4x LC Branch Jumpers

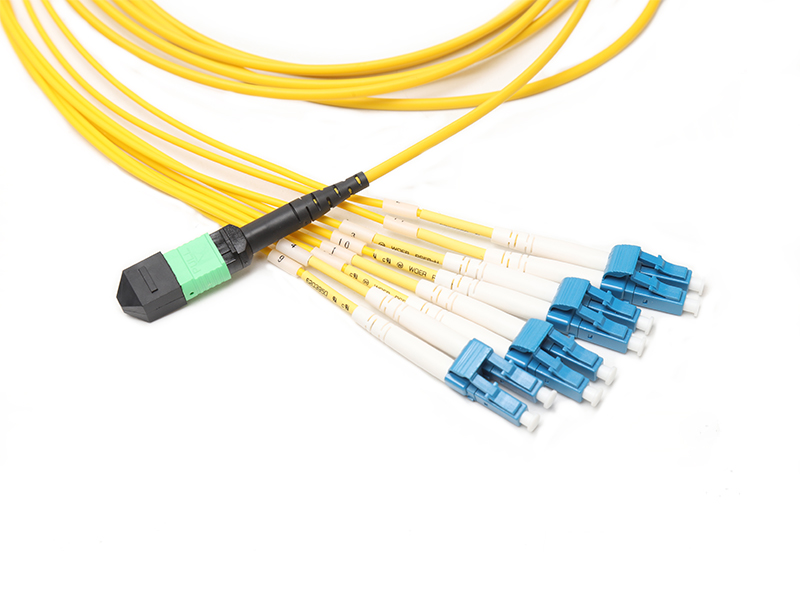

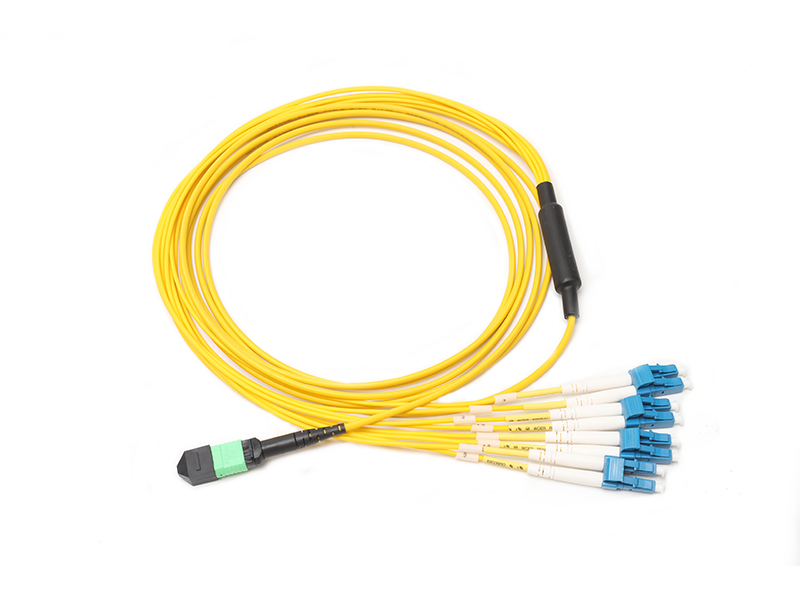

MPO UPC to LC UPC Duplex Single Mode(OS2) Branch Jumper

The MTP® harnesses allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunks. They are typically used for patching within a cabinet. MTP® cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

MTP®-8 is optimized for 40G QSFP+ PLR4 to 10G SFP+ LR,400G OSFP/QSFP-DD DR4 to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics connection and high density data center applications.

Please note:The US Conec MTP® connectors are fully compliant with the MPO standards,which offer novel patented features,enhanced precision,proven reliability,and significant performance improvements compared to generic MPO connectors.

Online inquiry

Share:

Leave a message

X

Name *

Email *

Tel

Website Link

Content

Product attributes

Connector AUS Conec MTP® Female Elite(Pinless)Connector BLC UPC Duplex
Fiber Mode OS2  9/125umWavelength1310/1550nm
Glass FiberCorning SMF-28® Ultra Fiber Fiber GradeG.657.A1(Compatible with G.652.D)
MTP Connector IL0.35dB MaxLC Connector IL≤0.2dB
MTP Connector RL≥60dBLC Connector RL≥50dB
Attenuation at 1310nm≤0.32dB/kmAttenuation at 1550nm≤0.18dB/km
Cable JacketPlenum(OFNP)Fiber Count8 Fiber
Cable Outside Diameter(OD)3.0mmBreakout Outside Diameter(OD)2.0mm
Installation Tensile Load
66NTensile Strength80/240N(Long/Short Term)
Operating Temperature-10 to 60℃(14 to 140℉)Storage Temperature-10 to 70℃(14 to 158℉)
