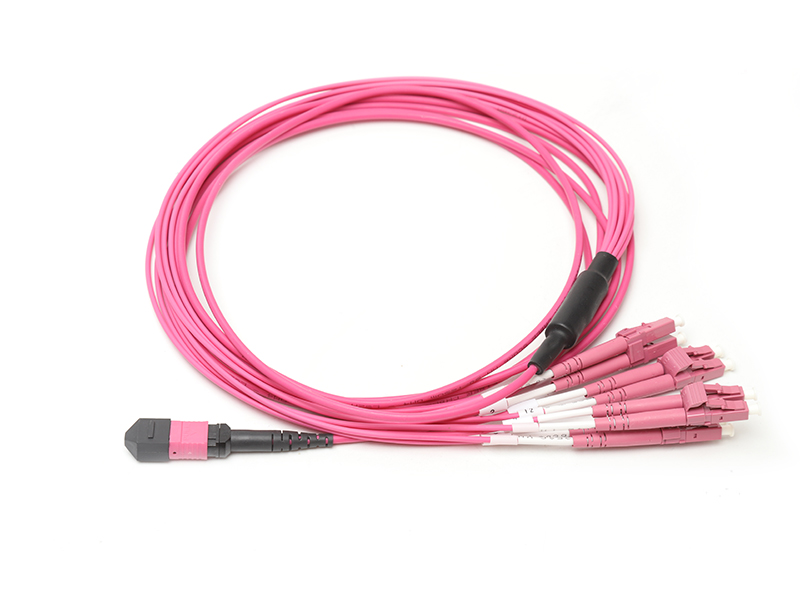

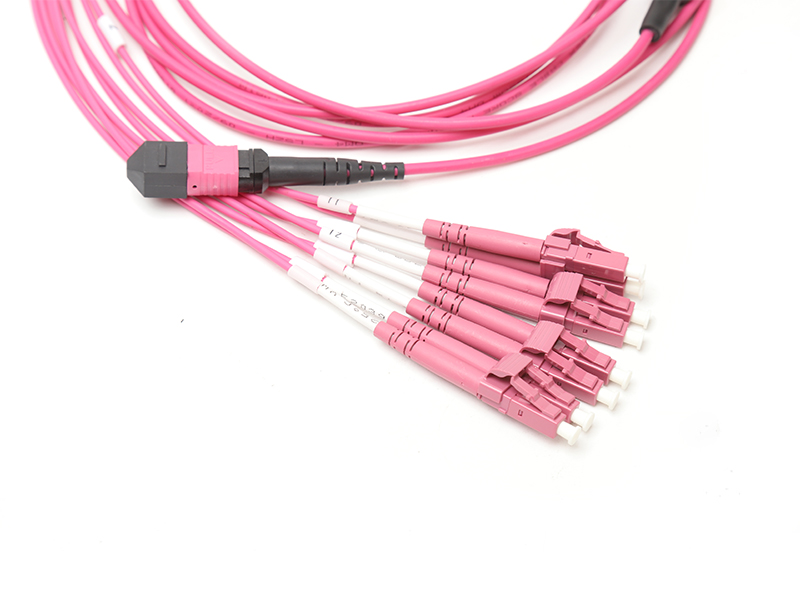

US Conec MTP® Connector with Optimal 0.35dB Low IL
Corning ClearCurve® Multimode Fiber with 7.5mm Min.Be
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Color-Coded MTP® Connector Boots for Easy Identification
Typically Used for Patching Within a Cabinet
Connector A | US Conec MTP®-16 Female(Pinless)with Offset Key | Connector B | LC UPC Duplex |
Fiber Mode | OM4 50/125µm | Wavelength | 850/1300nm |
400G Ethernet Distance | 100m at 850nm | Glass Fiber | Corning ClearCurve® Multimode Fiber |
MTP® Connector IL | ≤0.35dB Max(0.15dB Tpe) | LC Connector IL | ≤0.2dB |
MTP® Connector RL | ≥20dB | LC Connector RL | ≥30dB |
Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
Cable Jacket | Plenum(OFNP) | Fiber Count | 16 Fibers |
Cable Outside Diamter(OD) | 3.0mm | Breakout Outside Diameter(OD) | 2.0mm |
Installation Tensile Load | 66N | Tensile Strength(Long/Short Term) | 80N to 240N |
Operating Temperture | -10 to 60℃(14 to 140℉) | SPtporge Temperature | -10 to 70℃(14 to 158℉) |
