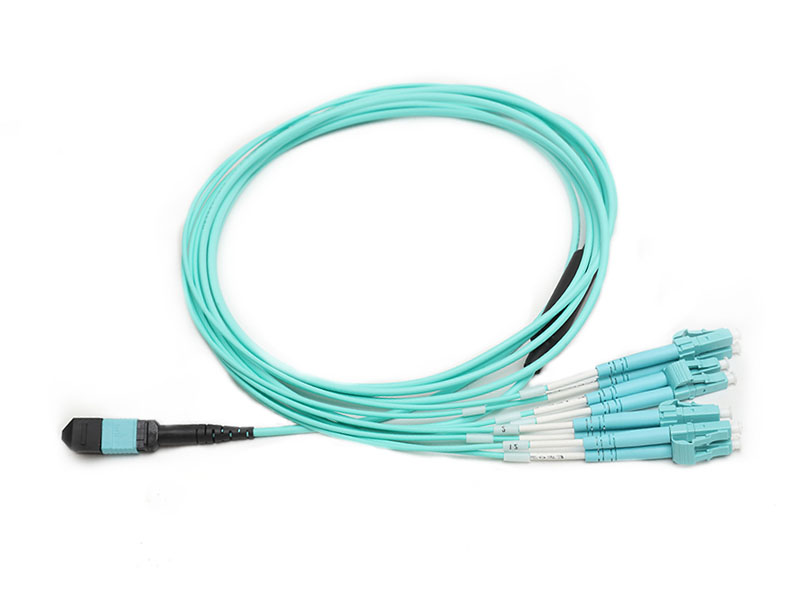

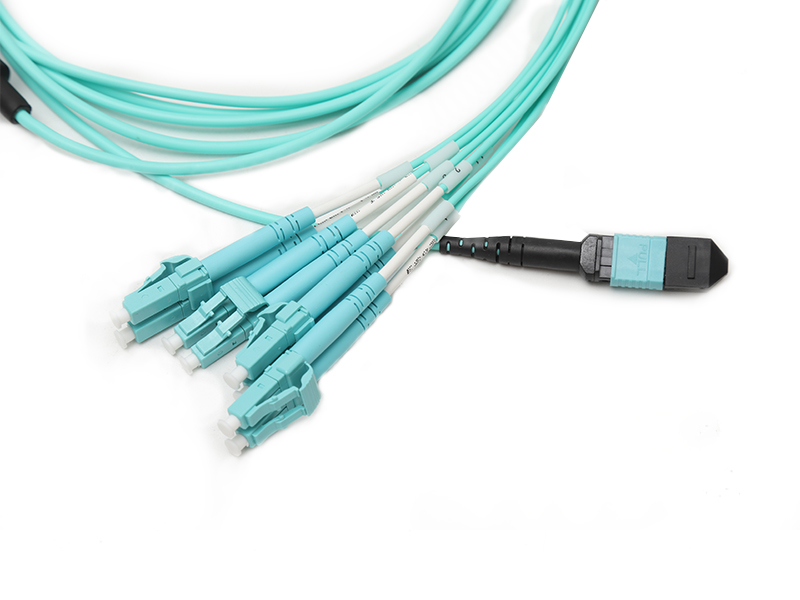

US Conec MTP® Connertor with Optimal 0.35dB lOW IL
Corning SMF-28® Ultra Fiber with 10mm Min.Bend Radius
OFNP Fire Safety-Rated for Use in Plenum Air Spaces
Color-Coded MTP® Connector Boots for Easy Identification
Typically Used for Patching Within Cabinet
Connector A | US Cones MTP® Female Elitr(Pinless) | Connector B | LC UPC Duplex |
Fiber Mode | OS2 9/125 µm | Wavelength | 1310/155nm |
Glass Fiber | Corning SMF-28® UItra Fiber | Fiber Grade | G657A1(Compatible with G652D) |
MTP Connector IL | 0.35dB Max(0.15dB Typ) | LC Connector IL | ≤0.2dB |
MTP Connector RL | ≥60 dB | LC Connector RL | ≥50dB |
Attenuation at 1310nm | ≤0.32dB/km | Attenuation at 1550nm | ≤0.18dB/km |
Cable Jacket | Plenum(OFNP) | Fiber Count | 8 Fibers |
Cable Outside Diameter | 3.0mm | Breakout Outside Diameter(OD) | 2.0mm |
Installation Tensile Load | 66N | Tensile Strength(Long/Short Term) | 80/240N |
Operating Temperature | -10 to 60℃(14 to 140℉) | Storage Teperature | -10 to 70℃(14 to 158℉) |
