MTP/MPO-16 Conversion Cable

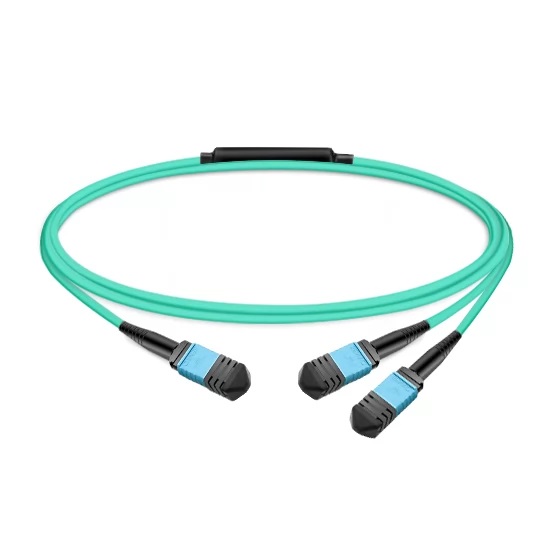

MTP® Conversion Cable,MTP®-16 F APC to 2x MTP®-8 UPC,16F,OM4,OFBP,Crossover

MTP® conversion cable is designed to provide a more flexible multi fiber cabling sysyem based on MTP® products.Unlike MTP® conversion cables are terminated with MTP® connectors on both ends and can provide more possibilities for the exising 16-fiber cabling system.

MTP®-16 APC to 2x MTP®-8 UPC conversion harness cable,whose MTP®-8 connectors use MTP®-12 only 8 active dibers to transmit light and 4 inactive fibers not connected, designed for linking two NVIDIA InfiniBand 200G QSFP56 or optical QSFP56 transceivers transmission to NVIDIA 400G QSFP-DD or optical QSFP-DD/QSFP transceiver transminnion.Compared to purchasing and installing separate conversion cassettes,using MTP® conversion cables is more cost-effective and lower loss.

Please note:The US Conec MTP® connectors are fully compliant compliant with the MPO standards,which offer novel patented features,enhanced precision,proven reliability.and significant performance improvements compared to generic MPO connectors.


Online inquiry

Share:

Leave a message

X

Name *

Email *

Tel

Website Link

Content

Features

US Conec MTP® Connector with Optimal 0.35dB IL

Corning ClearCurve® Multi mode Fiber with 7.5mm Min.Bend Radius

OFNP Fire Safety Rated for Use in Plenum Air Spaces

Color Coded Connector Boots for Easy Identification

Convert from 16 to 8 Fibers 100% Fiber Utilizations

Product attributes

Connector AUS Conec MTP®-16 Female(Pinless) APC with Offset KeyConnector BUS Conec MTP®-8 Female(Pinless) UPC
Fiber ModeOM4 50/125umWavelength850/1300nm
400G Ethernet Distance50/100m at 850nm800G Ethernet Distance50m at 850nm
Glass Fiber
Corning CiearCurve® Multimode FiberPolarityCrossover
Insertion loss≤0.35dBReturn loss≥20dB
Cable JacketPlenum(OFNP)Minimum Bend Radius7.5mm
Attenuation at 850nm≤2.3dB/kmAttenuation at 1300nm≤0.6dB/km
Cable Outside Diameter(OD)3,0mmBreakout Length0.5m
Installation Tensile Load
66NTensile Strength(Long/Short Term)60/120N
Operating Temperature-10 to 60℃(14 to 140℉)Storage Temperature-10 to 70℃(14 to 158℉)
