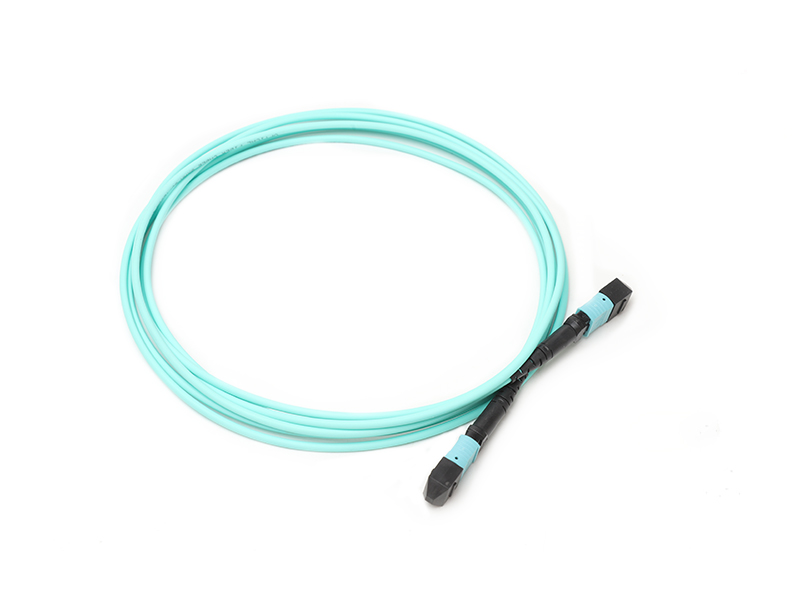

OM4 MTP12 Patch Cord

12 Fiber MTP to MTP Type A OFNP OM4 50/125µm Mulit Mode Patch Cord

MTP® Jumpers,allow for the seamless migration to higher data rates in the data center when used in conjunction with our trunk cables,They are typically used for patching within a cabinet.MTP® cable,a cost-effective alternative to time-consuming field termination,is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

Due to the MTP®-12 also supporting MTP®-8 fiber systems,it is also ideal for 8-fiber parallel single mode optical transceivers applications,such as 40G QSFP+PLR4,100G QSFP28 PSM4,400G OSFP DR4/XDR4,and 400G QSFP-DD DR4/XDR4 optics Connection.

Please note:The US Conec MTP® connectors are fully compliant with the MPO standards,which offer novel patented features,enhanced precision,proven reliability,and significant performance improvements compared to generic MPO connectors.

Online inquiry

Share:

Leave a message

X

Name *

Email *

Tel

Website Link

Content

Features

Low insertion loss, mating resistance, high temperature resistance without deformation

Good interchangeability and plugging

Excellent bending and tensile resistance

The transmission is high-speed and stable

Suitable for a wide range of high-density applications

STANDARDS COMPLIANCE

Comply with TelcordiaGR-326-CORE standard

Comply with ROHS requirements

Product attributes

ConnectorMTP(Female)-MTP(Female)
Polish Type
UPC-UPC
Fiber ModeOM4 50/125umWavelength850/1310nm
Cable JacketLSZH
PolarityType B
Insertion loss≤0.35dBReturn loss≥20dB
Min.Bend Radius7.5mmCable Outside Diameter(OD)3.0mm
Attenuation(850nm)
≤2.3dB/kmAttenuation(1310nm)≤0.6dB/km
Operting Temperature-10℃~+70℃Storage Temperature-40℃~+85℃
