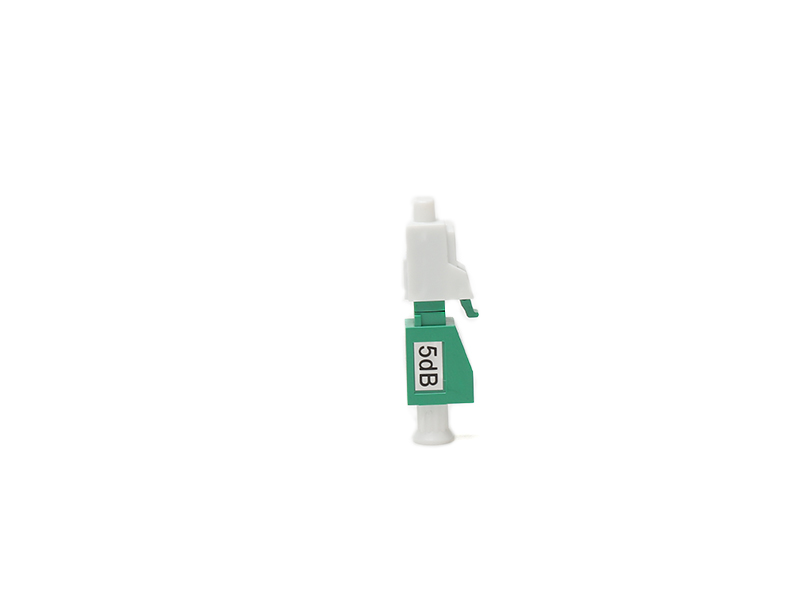

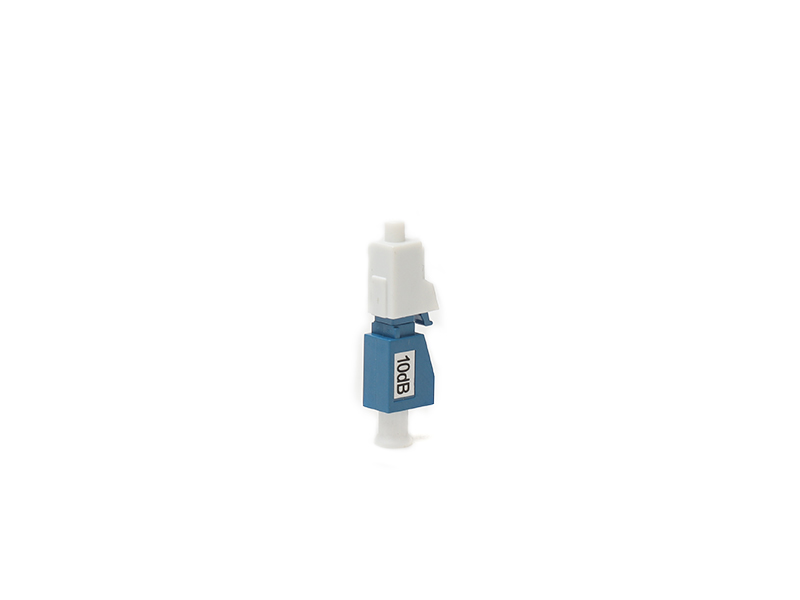

LC Attenuator

For high-speed fiber-optic communications and data networks, high-performance fiber jumpers mean lower insertion loss and better random interchangeability. IEC Grade B-class patch-cord require higher processing technology and materials than ordinary products. We offer reliable and stable IEC Grade A / B / C grade patch-cord.

Online inquiry

Share:

Leave a message

X

Name *

Email *

Tel

Website Link

Content

Product attributes

Adapter Type Fixed Attenuator
Attenuation Range0-30dB
Available Wavelengths1310nm or 1550nm
Fixed attenuation value1,2,3,5,10,15,20dB or optional
Return Loss≥50 dB (UPC) , ≥60 dB (APC)
Attenuation Accuracy+/-0.5 (1-5) dB , +/-10% (6-30) dB
Polarization Dependent Loss≤0.2dB
Temperature Range-40° C-80°C
Humidity Range+/- 0.2 dB Change in 10% to 90% relative Humidity Range.
Vibration≤0.1 dB change between 10Hz to 55Hz.
Drop+/- 0.2dB after 8 drops (3 axes) from 1.8 meters onto a hardsurface.



Plug-in Fixed Attenuator
Operating WavelengthSM: 1200-1600nm or 1310nm, 1550nm . MM: 850nm, 1300nm
Return Loss≥50 dB (UPC) , ≥60 dB (APC)
Attenuation Accuracy+/-0.5 (1-5) dB , +/-10% (6-30) dB
Polarization Dependent Loss≤0.2dB
Maximum Optical Input Power200mW
Operating Temp. Range-40 ~ 80° C
