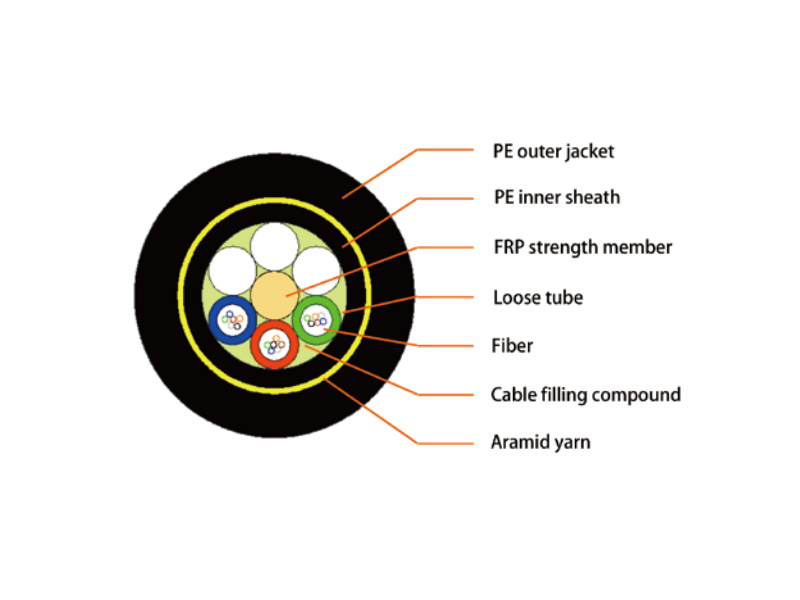

All dielectric non-material strength member
Special gel in the tube offers critical protection for the fibers
FRP central strength member& filling compound of aramid yarn from Dupont
Excellent AT performance
It’s available under high and low temperatures and anti-aging.
Its light weight& small diameter reduce loading on towers from ice and wind
Outer diameter (mm) | PE weight(KG/KM) | AT weight(KG/KM) | Max. working tension KN | Break strength KN | Heat expansion coefficient | Modulus of elasticity NK/mm² |
12.5 | 125 | 136 | 4 | 10 | 1.8 | 7.6 |
13.0 | 132 | 142 | 6 | 15 | 1.5 | 8.3 |
13.6 | 145 | 156 | 10 | 24 | 1.2 | 10.8 |
14.5 | 164 | 177 | 15 | 36 | 0.9 | 13.6 |
15.5 | 190 | 204 | 26 | 60 | 0.1 | 19.1 |
16.3 | 211 | 226 | 34 | 85 | 0.1 | 20.1 |
17.2 | 236 | 253 | 45 | 108 | -0.5 | 25.1 |
