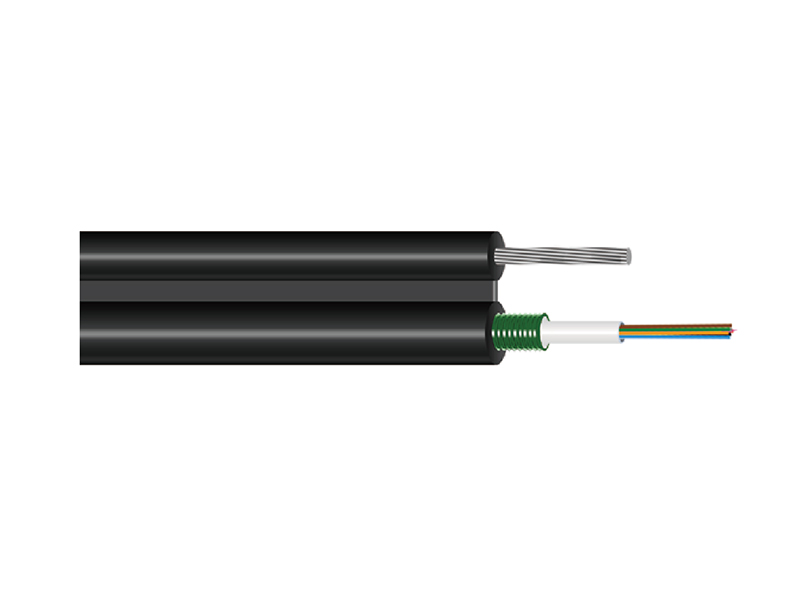

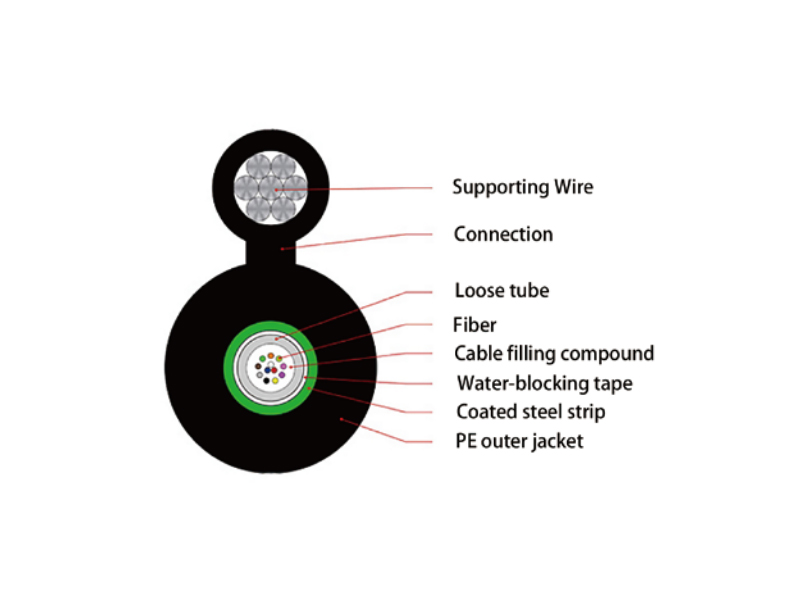

Independent stranded steel wire structure of figure 8self-supporting, provides high tension for the cable
Special gel in the tube offers critical protection for the fibers
Small diameter and light weight make it easy to be installed
PE jacket itself prevents UV, and UV material can be added to perform much better
It’s available under high and low temperatures and anti-aging
Fiber count | Suspension wire diameter (mm) | Outer diameter (mm) | Weight (g/M) | Max. Tension (N) | Max. Crush resistance (N) | Bending radius (mm) | |||
Long term | Short term | Long term | Short term | Dynamic | static | ||||
2-8 | Φ1.0*7 steel stranded wire | 5.5*10.0mm D*H | 48 | 400 | 1000 | 300 | 1000 | 10H | 20H |
