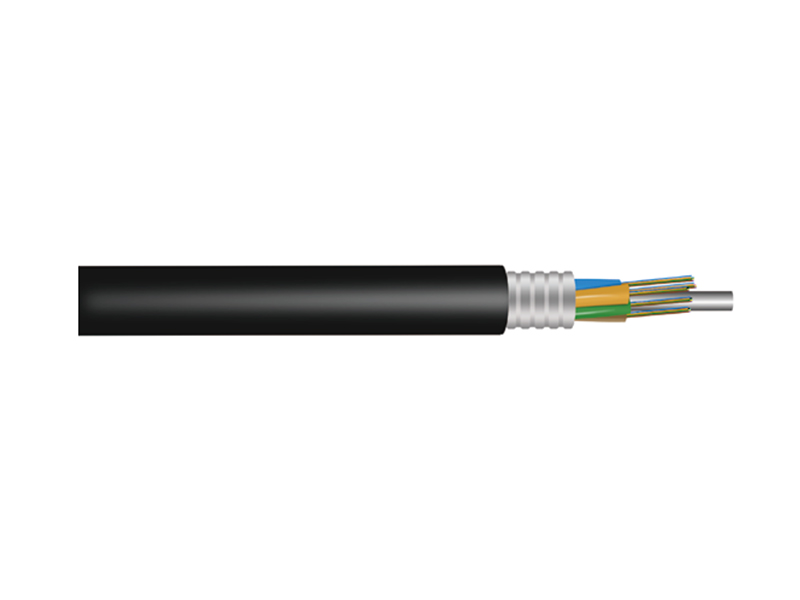

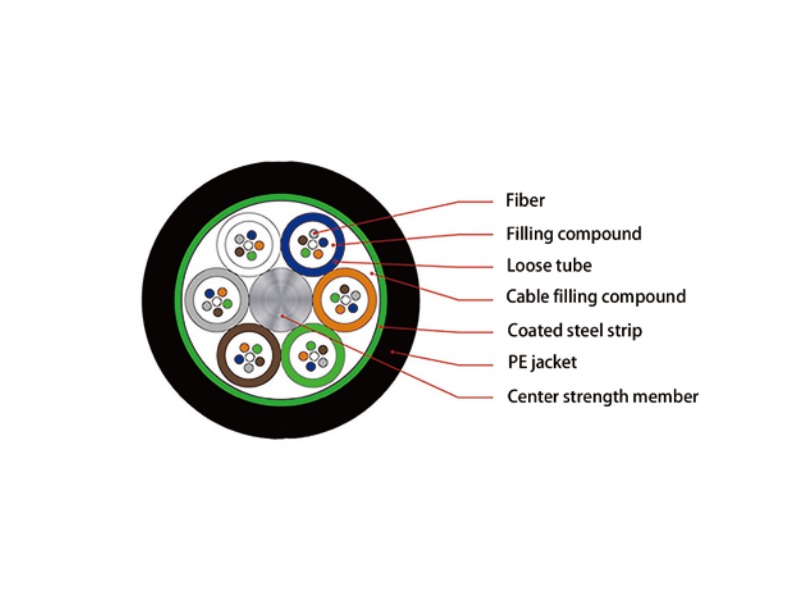

Aluminum jacket offers high tension and crush resistance
Special gel in the tube offers critical protection for the fibers
With steel central strength member
PE jacket itself prevents UV, and UV material can be added to perform much better
It’s available under high and low temperatures and anti-aging
Fiber count | Outer diameter (mm) | Weight (g/M) | QTY of tube | Max. Tension (N) | Max. Crush resistance (N) | Bending radius (mm) | |||
Long term | Short term | Long term | Short term | Dynamic | static | ||||
2-60 | 9.5 | 95 | 6 | 600 | 1500 | 300 | 1000 | 15D | 30D |
62-72 | 10.5 | 100 | 6 | 600 | 1500 | 300 | 1000 | 15D | 30D |
74-96 | 12.5 | 140 | 8 | 600 | 1500 | 300 | 1000 | 15D | 30D |
98-120 | 14.5 | 150 | 10 | 600 | 1500 | 300 | 1000 | 15D | 30D |
122-144 | 16.5 | 210 | 12 | 600 | 1500 | 300 | 1000 | 15D | 30D |
