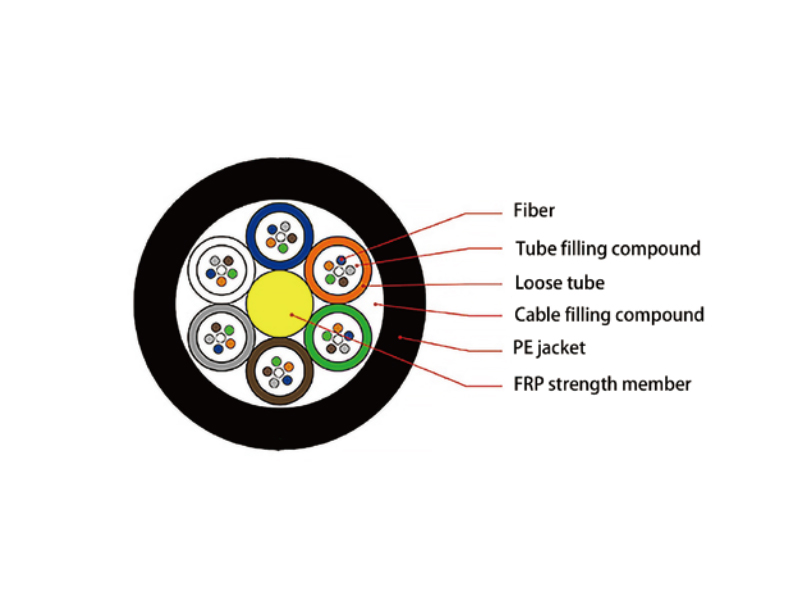

Non-metallic water blocking+ glass yarn provides high tensile strength.
Special gel in the tube offers critical protection for the fibers.
With FRP central strength member.
PE jacket itself prevents UV, and UV material can be added to perform much better.
It’s available under high and low temperatures and anti-aging.
Fiber count | Outer diameter (mm) | Weight (g/M) | QTY of tube | Max. Tension (N) | Max. Crush resistance (N) | Bending radius (mm) | |||
Long term | Short term | Long term | Short term | Dynamic | static | ||||
2-36 | 10.2 | 90 | 6 | 600 | 1500 | 300 | 1000 | 15D | 30D |
38-72 | 11.0 | 110 | 6 | 600 | 1500 | 300 | 1000 | 15D | 30D |
74-96 | 12.0 | 135 | 8 | 600 | 1500 | 300 | 1000 | 15D | 30D |
98-120 | 14.0 | 170 | 10 | 600 | 1500 | 300 | 1000 | 15D | 30D |
122-144 | 16.0 | 200 | 12 | 600 | 1500 | 300 | 1000 | 15D | 30D |
