Good mechanical& temperature performance
Good performance in crush and flexibility
It performs well in harsh environments, with long life time and tough outer jacket

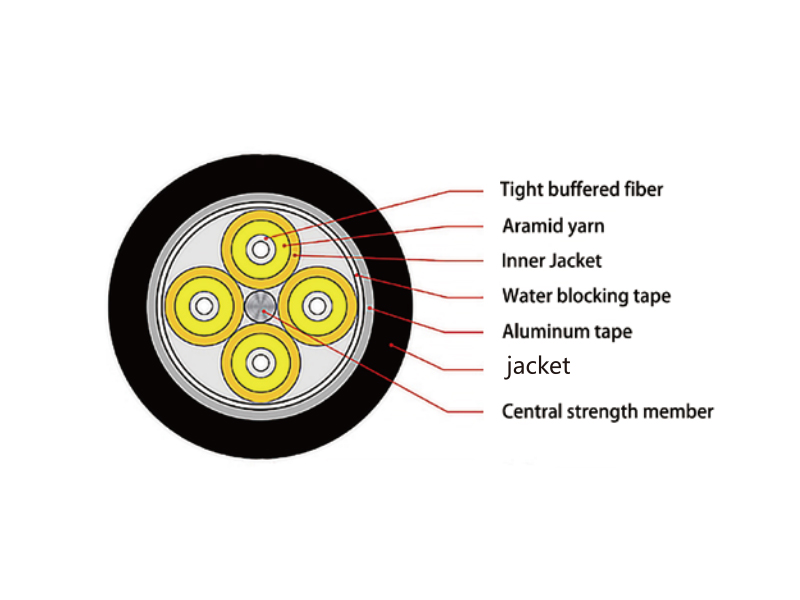

Water blocking tape holds the simplex cables firmly
The aluminum tape is moistureproof
Water blocking tape prevents cable from water comes vertically
Fiber count | Outer diameter of sub-units (mm) | Outer diameter (mm) | Weight (g/M) | Max. Tension (N) | Max. Crush resistance (N) | Bending radius (mm) | |||
Long term | Short term | Long term | Short term | Dynamic | static | ||||
2-4 | 2.6 | 9.8 | 80 | 1000 | 2000 | 300 | 1000 | 15D | 30D |
6-8 | 2.4 | 11.8 | 100 | 1000 | 2000 | 300 | 1000 | 15D | 30D |
10-12 | 1.8 | 14.8 | 150 | 1000 | 2000 | 300 | 1000 | 15D | 30D |
