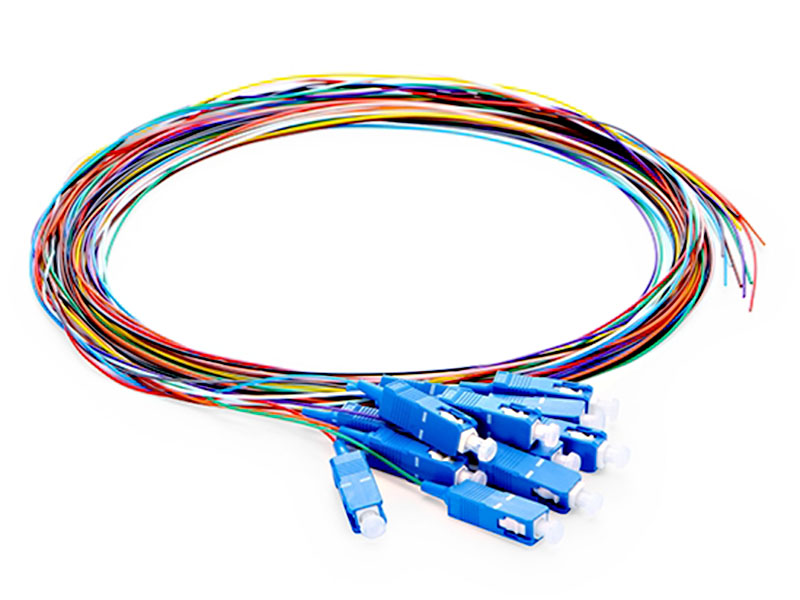

SC/UPC 12Color Pigtails

Fiber Pigtil,SC UPC to Unterminated,12 Fibers,Unjacketed Color Coded,OS2,OFNR,0.9mm,1m(3ft)

12 Fibers optic pigtails are ideal for fusion splicing the required fiber connectivity for structured cabling systems including Data Centers,Boradband CATV,PON(Passive Optical Network),WDM or DWDM multiplexing,FTTH and voice services in ATM and SONET metropolitan and access networks.

The OS2 bend insensitive fiber optic pigtails have less attenuation when bent or twisted compared with traditional fiber optic pigtails and this will make the installation and maintenance more efficient.

Online inquiry

Share:

Leave a message

X

Name *

Email *

Tel

Website Link

Content

Features

G657A1 Bend Insensitive Fiber & 10mm Min.Bend Radius

Color Coded for Easy Matching of 0.9mm Fiber ot Be Spliced

Easy strip 900um Tight buffered Coating

Industry Standard PVC Flame retardant Cable Jacket

Support Both Fusion and Mechanical Splicing

Product attributes

Connector ASC UPC SimplexConnector BUnterminated
Fiber Count12 FibersFiber GradeG657A1
Fiber Mode0S2 9/125umWavelength1310/1550nm
Jacket Color12 ColorCable TypeTight Buffered
Cable Outaside Diameter(OD)
0.9mmCable JacketPVC(OFNR)
Min.Bend Radius(Optical Fiber)10mmMin.Bend Radius(Fiber Cable)10/5D(Dynamic/Static)
Connector Durability1000 TimesStandardRpHS Compliant
Attenuation at 1310nm0.36dB/kmAttenuation at 1550nm
0.22dB/km
Insertion Loss≤0.3dBReturn Loss≥50dB
Vibration≤0.2dBInterchangeability≤0.2dB
Operating Temperature-40 to 75℃(-40 to 167℉)Storage Temperature-45 to 85℃(-49 to 185℉)
