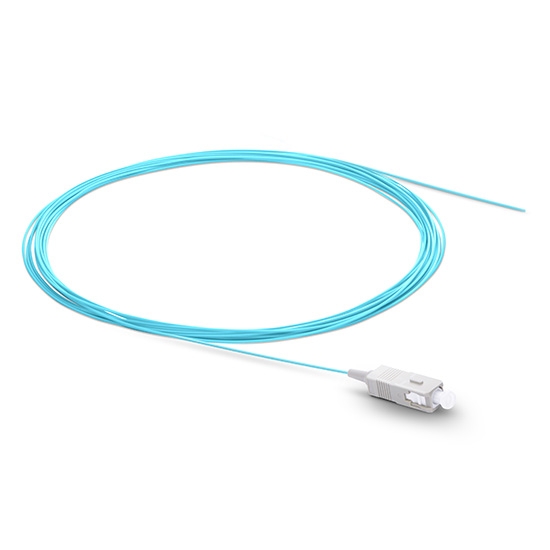

SC/UPC OM4 Pigtails

SC/UPC Pigtail | Multi Mode G651.OM4 | 0.9mm

12 Fiber optic Pigtails are ideal for fusion splicing the required fiber connectivity for structured cabling sicluding Data Centers,Broadband CATV,PON(Passive Optical Network),WDM or DWDM multiplexing.FTTH and voice services in ATM and SONET metropolitan and access networks.

The OM4 bend insensitive fiber optic pigtails have less attenuation when bent or twisted compared with traditional fiber optic pigtails and this will make the installation and maintenance more efficient.

Online inquiry

Share:

Leave a message

X

Name *

Email *

Tel

Website Link

Content

Features

Bend Insensitive Fiber & 7.5mm Min.Bend Radius

Color coded for Easy Matching of 0.9mm Fiber to Be Spliced

Easy strip 900um Tight buffered Coating

Industry Standard PVC Flame retardant Cable Jacket

Support Both Fusion and Mechanical Splicing

Product attributes

Connector ASC UPC SimplexConnector B
Unterminated
Fiber Count12 FibersFiber GradeBend Insensitive
Fiber ModeOM4 50/125umWavelength850/1300nm
Jacket ColorAquaCable Type
Tight Buffered
Cable Outside Diameter(OD)0.9mmCable JacketPVC(OFNR)
Min.Bend Radius(Optical Fiber)7.5mmMin.Bend Radius(Fiber Cable)20/10D(Dynamic/Static)
Connector Durability1000 TimesTensile Strength(Long/Short Term)200/660N
Attenuation at 850nm
0.30dB/kmAttenuation at 1300nm1.0dB/km
Insertion Loss≤0.2dBReturn Loss≥30dB
Vibration≤0.2dBInterchangeability≤0.2dB
Operating Temperature-40 to 75℃(-40 to 167℉)Storage Temperature-45 to 85℃(-49 to 185℉)
