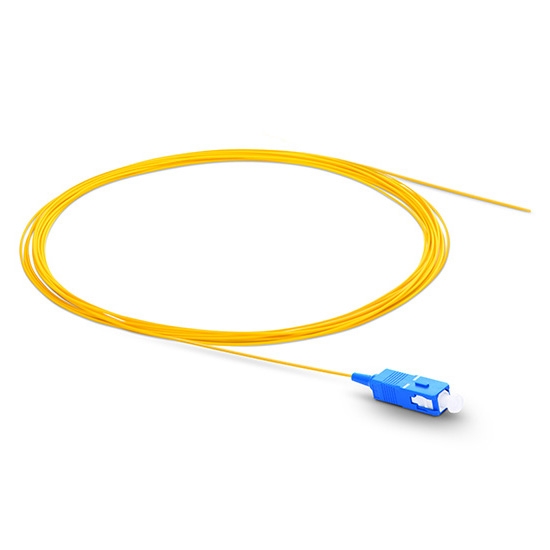

SC/UPC OS2 Pigtails

Fiber Pigtail,SC UPC to Unterminated,Simplex,OS2,OFNR,0.9mm

Fiber optic pigtails are designed to support fusion and mechanical splicing for fiber cabling systems,They provide a fast way to make communication devices in the field.

The OS2 bend insensitive fiber optic pigtails have less attenyation when bent or twisted than traditional fiber optic pigtails,making installation and maintenance more effcient.

Online inquiry

Share:

Leave a message

X

Name *

Email *

Tel

Website Link

Content

Features

High Temperature Stability

Good Exchangeablility

Good Durability

Low Insertion Loss

High Back Reflection Loss

Standard:Telcordia GR-326-CORE

Product attributes

Connector A SC UPC SimplexConnector BUnterminated
Fiber Count1 Fiber Fiber GradeG657A1
Fiber ModeOS2 9/125umWavelength1310/1550nm
Jacket ColorYelloeCable TypeTight Buffered
Cable Outside Diameter(OD)0.9mmCable JacketPVC(OFNR)
Min.Bend Radius(Optical Fiber)10mmMin.Bend Radius(Fiber Cable)10/5D(Dynamic/Static)
Connector Durabidity1000 TimesStandardRoHS Compliant
Attenuation at 1310nm
0.36dB/kmAttenuation at 1550nm0.22dB/km
Insertion Loss≤0.3dBReturn Loss≥50dB
Vibration
≤0.2dBInterchangeability≤0.2dB
Operating Temperature-40 to 75℃(-40 to 167℉)Storage Temperature-45 to 85℃(-49 to 185℉)
