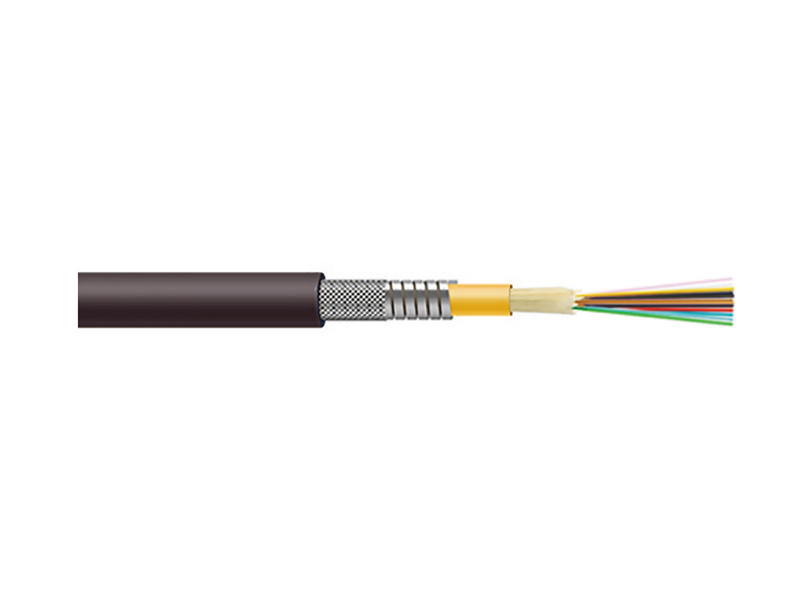

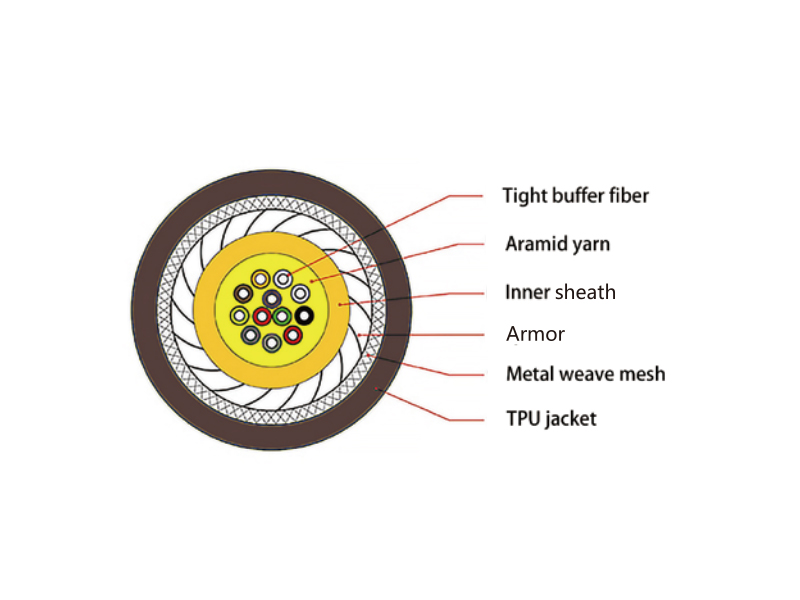

High strength and toughness polyurethane TPU jacket, oil and acid resistant chemical corrosion, DuPont Kevlar imports strengthened to enhance the anti-pull.
Good flexibility, can maintain softness in low temperature. Wearable pressure and with good buffer.
SUS stainless steel spiral tube, to further enhance the tensile strength of the cable, compression and anti-rat bite performance at the same time, it can ensure the softness of the cable.
Cores | Parallel reinforcement specification (mm) | Outer diameter (mm) | Weight (g/M) | Max. Tension (N) | Max. Crush resistance (N) | Bending radius (mm) | |||
Long term | Short term | Long term | Short term | Dynamic | static | ||||
2-4 | Dupont aramid | Φ5.0mm | 42 | 500 | 1000 | 500 | 2000 | 10D | 20D |
6 | Dupont aramid | Φ5.5mm | 58 | 700 | 1500 | 500 | 2000 | 10D | 20D |
8 | Dupont aramid | Φ6.0mm | 68 | 800 | 1600 | 500 | 2000 | 10D | 20D |
12 | Dupont aramid | Φ6.2mm | 75 | 1000 | 2000 | 500 | 2000 | 10D | 20D |
