High strength and toughness polyurethane TPU jacket, oil and acid resistant chemical corrosion, DuPont Kevlar imports strengthened to enhance the anti-pull.
Good flexibility, can maintain softness in low temperature. Wearable pressure and with good buffer.

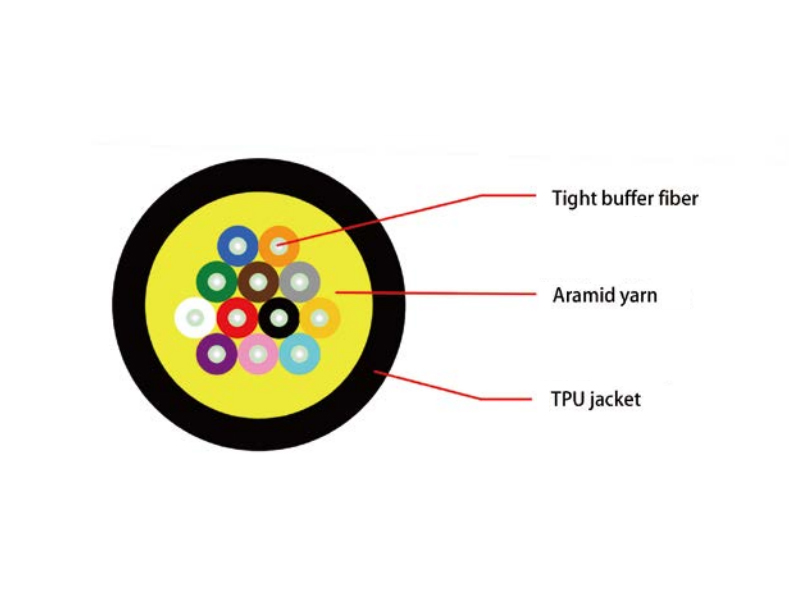

Circular cross-section design to facilitate the alignment groove, pipe, small size, soft and flexible, easy to peel, easy construction and operation, especially for repeated occasions.
Cores | Outer diameter (mm) | Weight (g/M) | Tension (N) | Bending radius (mm) | Pressure (N/100mm²) | |||
Short | Long | Dynamic | Static | Long term | Short term | |||
4 | 4.8±0.2 | 21 | 1200 | 600 | 20D | 10D | 500 | 2000 |
6 | 5.2±0.2 | 26 | 1200 | 600 | 20D | 10D | 500 | 2000 |
8 | 6.2±0.2 | 35 | 1600 | 800 | 20D | 10D | 500 | 2000 |
12 | 6.8±0.2 | 43 | 1800 | 900 | 20D | 10D | 500 | 2000 |
16 | 7.4±0.4 | 55 | 2000 | 1000 | 20D | 10D | 500 | 2000 |
24 | 8.2±0.4 | 68 | 2500 | 1000 | 20D | 10D | 500 | 2000 |
